Desktop 3D Scanner

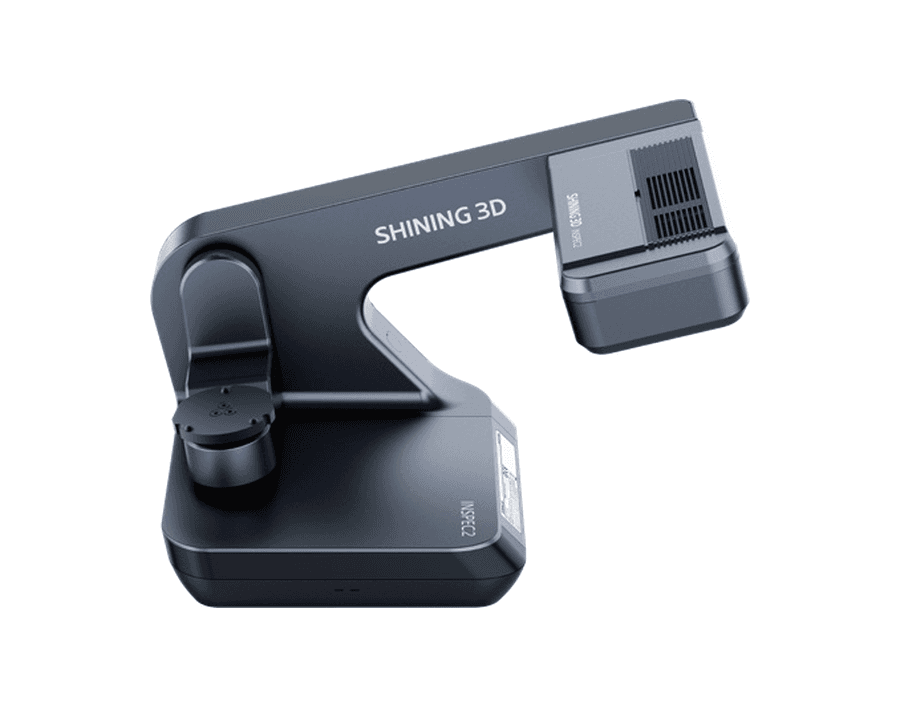

AutoScan Inspec2 – Automatic Desktop 3D Scanner

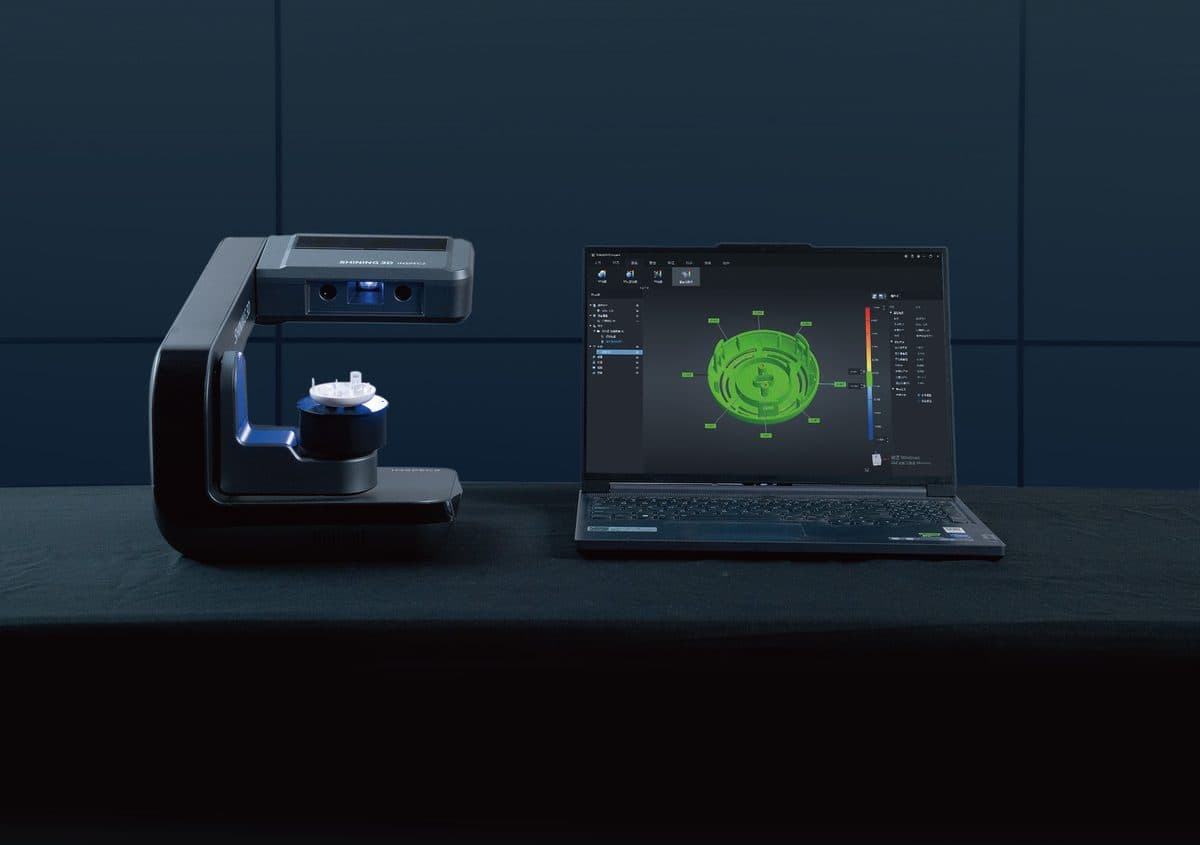

AutoScan Inspec2 is a compact, automatic desktop 3D scanner built for small, complex parts. Dual 5MP cameras and a 3-axis turntable capture every angle with one click, while SHINING3D Inspect — PTB certified — takes you straight from scan to dimensional analysis, GD&T inspection, and professional reports.
Key Features
- Metrology-grade accuracy of 0.01 mm
- Dual 5MP cameras capture ultra-fine details

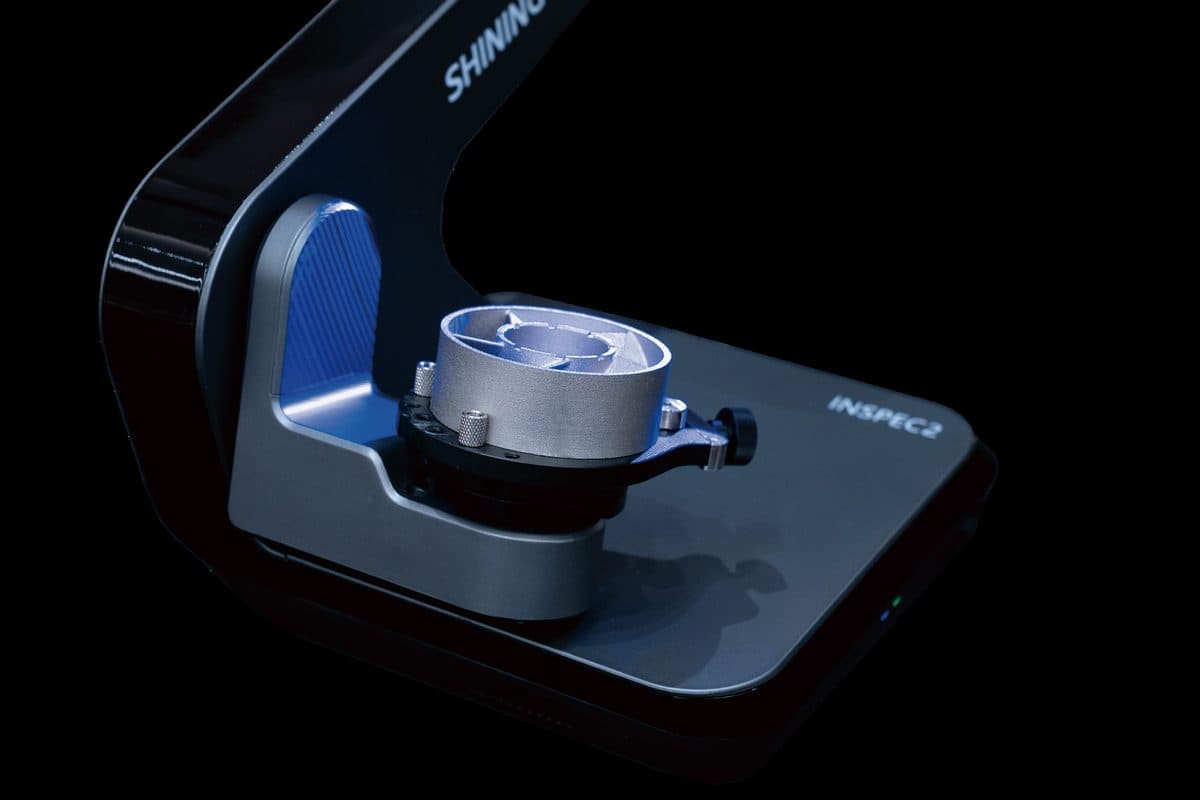

- 3-axis turntable for hands-free, one-click scanning
- Full-color scanning for true-to-life texture
- UltraScan software with AI scanning; works with SHINING3D Inspect, Geomagic Control X, Design X, PolyWorks and more
- PTB-certified inspection: GD&T, 3D mesh comparison, auto inspect and custom reports
- Compact and lightweight at only 5 kg
Applications
Quality controlReverse engineeringProduct designJewelryHeritage preservationHealthcare
Specifications
0.01 mm
Accuracy
140 × 90 × 80 mm
Field of view
0.05 mm
Point distance
2 × 5MP
Camera resolution
3 Axis
Rotation axis
LED blue light
Light source
5 kg
Weight
STL, OBJ, PLY
Output format
